Nayax EV Meter Pay² Dual 22kW Commercial EV Charging Station

Name: Nayax EV Meter Pay² Dual 22kW Commercial EV Charging Station
Brand: Nayax
Price: 4599.00 NZD
Availability: InStock

$4,599.00 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

📦 Available to order — Contact us for pre-order options and delivery timeline.

This is a pre-order item. Your order will be confirmed and delivery timeline provided after we process your request.

Two Charging Bays, One Connected Platform

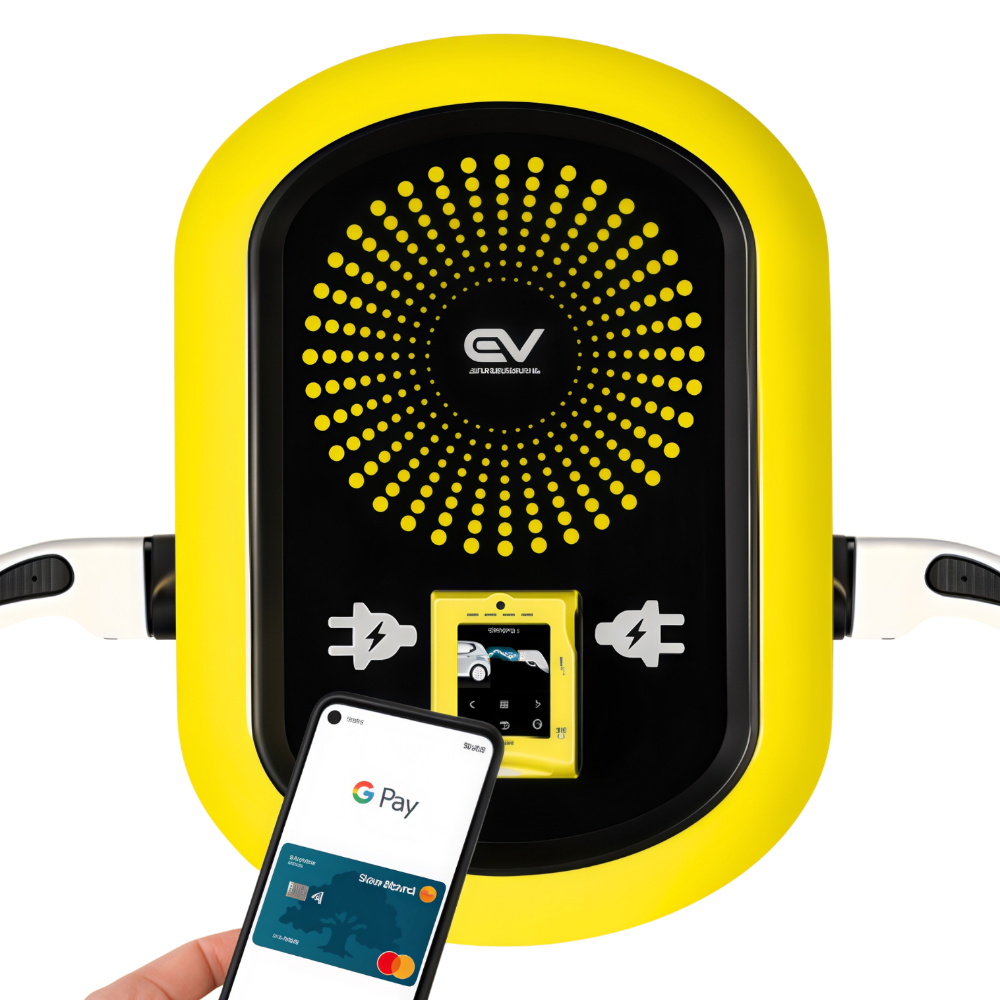

Bring dual-bay EV charging, customer payment and connected operation together with the Nayax EV Meter Pay². Designed for suitable commercial locations, it combines two Type 2 open sockets with integrated payment and manufacturer-listed metering to support two adjacent charging bays from one coordinated solution.

Why customers choose it

Serve two charging bays — two Type 2 open sockets allow two compatible vehicles to charge at the same time using suitable charging cables.
Flexible site performance — provide up to 2 × 22kW where supported by the available supply, vehicle limits, circuit design and load-management settings.
Payment at the charger — support customer payment at the station, subject to the selected acquiring, merchant and platform arrangements.
Connected commercial operation — manufacturer-listed Ethernet, 4G, OCPP 1.6J and dynamic load-management capability support suitable managed charging projects.

Ideal for
Suitable hotels, workplaces, retail destinations, public parking, fleets and multi-residential sites with two adjacent bays requiring integrated payment or managed access.

Site assessment and professional installation required
Dual-port output, supply capacity, diversity, protection, load management, mounting, communications, accessibility, commissioning, testing and certification must be assessed and delivered by appropriately qualified providers.

"Up to 2 × 22kW" is a maximum product capability, not a guarantee of continuous simultaneous output. Actual charging power and payment, SIM, acquiring, settlement, receipt, backend, OCPP and load-management functions depend on the exact configuration, vehicles, site, network and contracted services. Associated fees and New Zealand availability must be confirmed separately.

View full details

🔌

Dual Type 2 Outlets

Two independent Type 2 sockets for adjacent commercial bays

⚡

Up to 2 × 22kW

Site-dependent dual-bay AC charging capacity

💳

Integrated Payment

Card, contactless and mobile-payment methods supported

📶

Connected Operation

Ethernet and 4G connected commercial charging

Hotels and Accommodation — two-bay customer charging with integrated payment.
Retail and Destinations — convenient charging for suitable visitor locations.
Workplaces and Fleets — connected charging for two adjacent bays.
Public and Shared Parking — managed dual-outlet charging subject to project design.

Connect one or two compatible Type 2 vehicles using suitable charging cables, select the correct outlet, authorise payment or access and follow the enabled session instructions.

The exact two-bay journey depends on the terminal, network, backend and merchant configuration.

Integrated payment — supports enabled card, contactless and mobile-payment methods.
RFID/NFC access — available for supported managed users.
Connected operation — Ethernet, 4G, OCPP and load-management capability depend on the selected setup.

Merchant services, SIM, software, fees and backend support are supplied only as stated in the commercial agreement.

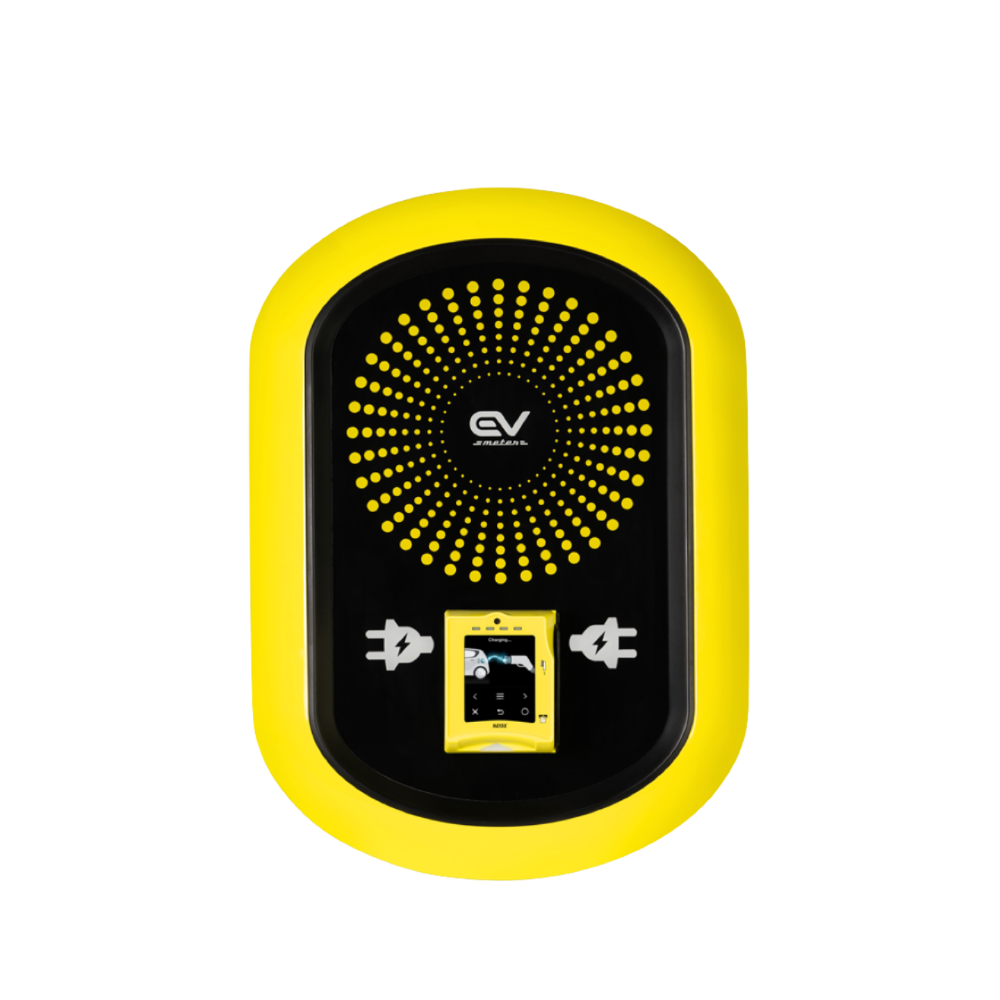

Nayax EV Meter Pay² charging station (open socket, Type 2)
Mounting hardware subject to confirmed configuration
Installation manual

Cable, pedestal, and additional accessories are not included unless expressly stated in the accepted GridPilot quotation.

Manufacturer material lists residual-current detection, current and voltage protection, surge-protection functions and enclosure impact protection.

Refer to the manufacturer manual for complete safety information. Commercial site assessment and professional installation are required.

Commercial site assessment and professional installation required.

Electrical capacity, two-bay layout, mounting, accessibility, impact protection, communications and payment requirements must be assessed for the site. Refer to the manufacturer manual and accepted project scope for complete requirements.

Charging Mode	Mode 3 AC charging
Maximum Power	Up to 2 × 22kW; site-dependent
Input Voltage	Suitable for a professionally designed compatible AC supply
Phase	Single- or three-phase configuration subject to exact order
Connector	Two Type 2 open sockets; compatible charging cables required
IP Rating	Manufacturer-rated IP55 enclosure for suitable locations
IK Rating	Robust manufacturer-rated enclosure and terminal
Mounting	Flexible project mounting subject to confirmed accessories
Dimensions	Integrated dual-outlet commercial enclosure
Operating Altitude	≤2,000m
RCD Protection	Electronic AC 30mA + DC 6mA residual-current detection

Does it always provide 2 × 22kW?

No. Output depends on both vehicles, available supply and configured limits.

Do customers need charging cables?

The listed socket configuration normally requires compatible customer-supplied Type 2 cables

Are payment, SIM and platform fees included?

Only where expressly stated in the accepted agreement

Is installation included?

No. GridPilot supplies the charging equipment but does not supply or invoice electrical installation. Installation is separately assessed, quoted, contracted, invoiced, completed, tested and certified by an independent licensed electrical contractor engaged directly by the customer.
