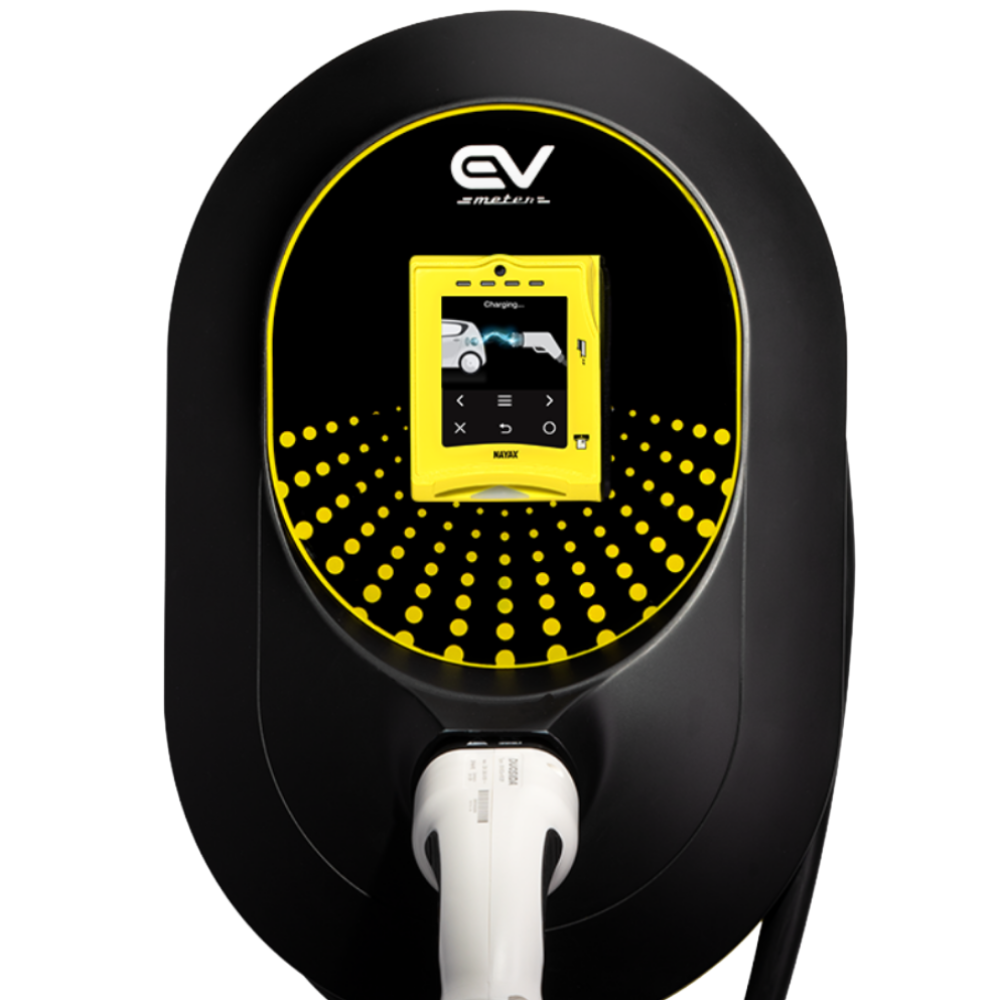

Nayax EV Meter Pay 22kW Commercial EV Charger with Integrated Payment

Nayax EV Meter Pay 22kW Commercial EV Charger with Integrated Payment

$2,599.00 NZD
$2,599.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

ðŸ“Ķ Available to order — Contact us for pre-order options and delivery timeline.

This is a pre-order item. Your order will be confirmed and delivery timeline provided after we process your request.

Commercial Charging with Payment Built In

Bring charging and customer payment together in one connected commercial station with the Nayax EV Meter Pay. Designed for suitable hotels, workplaces, retail destinations, public parking and multi-residential sites, it combines one Type 2 open socket with integrated payment, connected operation and manufacturer-listed metering.

Why customers choose it

  • Simple customer access — allow drivers to pay at the charging station using supported payment methods, subject to the selected commercial-service arrangement.
  • Flexible AC charging — deliver up to 22kW where supported by the vehicle, site supply and installation design.
  • Connected operation — manufacturer-listed Ethernet, 4G and OCPP 1.6J support can help connect the charger with the selected operating platform.
  • Designed for commercial records — manufacturer-listed metering supports usage records, subject to verification for the intended New Zealand billing model.

Ideal for
Suitable hotels, workplaces, retail destinations, public parking and multi-residential sites requiring one customer-facing commercial charging outlet with integrated payment or managed access.

Site assessment and professional installation required
Commercial charging, payment and communications requirements must be assessed together. Final supply capacity, circuit design, protection, mounting, connectivity, commissioning, testing and certification must be completed by appropriately qualified providers.

Maximum charging power is up to 22kW. Actual charging speed and payment, SIM, acquiring, settlement, receipt, backend, OCPP and load-management functions depend on the exact configuration, vehicle, site, network and contracted services. Associated fees and New Zealand availability must be confirmed separately.

View full details
ðŸ’ģ
Integrated Payment
Card, contactless and mobile-payment methods supported
⚡
Up to 22kW AC Charging
Practical single- or three-phase charging for compatible commercial locations
ðŸ“ķ
Ethernet & 4G Connected
Reliable connected operation for commercial sites
ðŸ›Ąïļ
IP55 & IK10 Rated
Manufacturer-rated enclosure and terminal for suitable commercial locations
  • Hotels & Hospitality — Suitable guest charging for hotel car parks and accommodation properties.
  • Workplaces — Staff, visitor and fleet charging for compatible commercial sites.
  • Retail & Public Parking — Customer-facing charging with integrated payment for suitable retail and public locations
  • Multi-Residential — Selected shared-parking projects, subject to site design, approvals and access requirements.
  • One Bay, One Station — Designed to serve one customer-facing charging bay per unit.

The Nayax EV Meter Pay delivers up to 22kW AC charging for compatible vehicles at suitable commercial locations. The open socket design accepts a customer's own Type 2 cable, keeping the station compact and suitable for shared public use.

Actual charging speed depends on the vehicle's onboard charger, available site capacity, configured current and installation conditions.

Pay directly at the charger using supported card, contactless or mobile-payment methods. RFID and NFC managed access are also supported, with optional QR listed subject to configuration.

Payment availability, acquiring, fees, settlement, refunds and chargebacks are subject to the selected commercial-service agreement. Connected platform services are provided subject to the applicable Nayax agreement.

  • Nayax EV Meter Pay O charging station (open socket, Type 2)
  • Mounting hardware subject to confirmed configuration
  • Installation manual

Cable, pedestal, and additional accessories are not included unless expressly stated in the accepted GridPilot quotation.

The Nayax EV Meter Pay O includes electronic AC 30mA + DC 6mA residual-current detection, overvoltage and undervoltage protection, and overcurrent protection. The manufacturer-rated IP55 enclosure and IK10 impact-rated housing are designed for suitable commercial locations.

Site-specific upstream circuit protection, load management and earthing must be designed and installed by an appropriately licensed New Zealand electrical worker.

Professional installation required.

This hardwired commercial charger must be installed, grounded, configured, tested and commissioned by an appropriately licensed New Zealand electrical worker. A commercial site assessment is required before installation to assess parking layout, accessibility, weather exposure, impact protection and communications coverage.

Final circuit design, upstream protection, load management, cable sizing and mounting depend on the site. Refer to the manufacturer installation manual for full positioning, wiring, earthing, commissioning and safety requirements.

Charging ModeMode 3 AC charging
Maximum PowerUp to 22kW
Rated CurrentUp to 3 × 32A
Input VoltageSuitable for a professionally designed compatible AC supply
PhaseSingle- or three-phase configuration subject to exact order
ConnectorType 2 open socket for compatible vehicles
IP RatingManufacturer-rated IP55 enclosure for suitable locations
IK RatingRobust manufacturer-rated enclosure and terminal
MountingFlexible project mounting subject to confirmed accessories
Dimensions480 × 300 × 180mm
Operating Altitudeâ‰Ī2,000m
RCD ProtectionElectronic AC 30mA + DC 6mA residual-current detection
What payment methods are accepted?
The Nayax EV Meter Pay O supports selected card, contactless and mobile-payment methods. Payment availability, acquiring fees, settlement, refunds and chargebacks are subject to the selected commercial-service agreement with Nayax.
Is installation included?
No. GridPilot supplies the charging equipment but does not supply or invoice electrical installation. Installation is separately assessed, quoted, contracted, invoiced, completed, tested and certified by an independent licensed electrical contractor engaged directly by the customer.
What vehicles is it compatible with?
The EV Meter Pay O is designed for compatible Type 2 vehicles. Confirm the vehicle connector and onboard AC charging limit before purchase. A customer-supplied Type 2 cable is required for the open socket configuration.
Will it always charge at 22kW?
No. Actual charging power depends on the vehicle's onboard AC charger limit, available site capacity, configured current and installation conditions.
What connectivity does it use?
The EV Meter Pay O uses Ethernet and 4G for connected operation. Connected platform services are subject to the applicable Nayax commercial-service agreement, including SIM, backend and transaction fees.
What warranty applies?
Warranty details covering hardware, payment terminal, metering and NZ support terms are pending confirmation. Any applicable warranty is additional to rights and remedies that cannot lawfully be excluded under New Zealand law.
