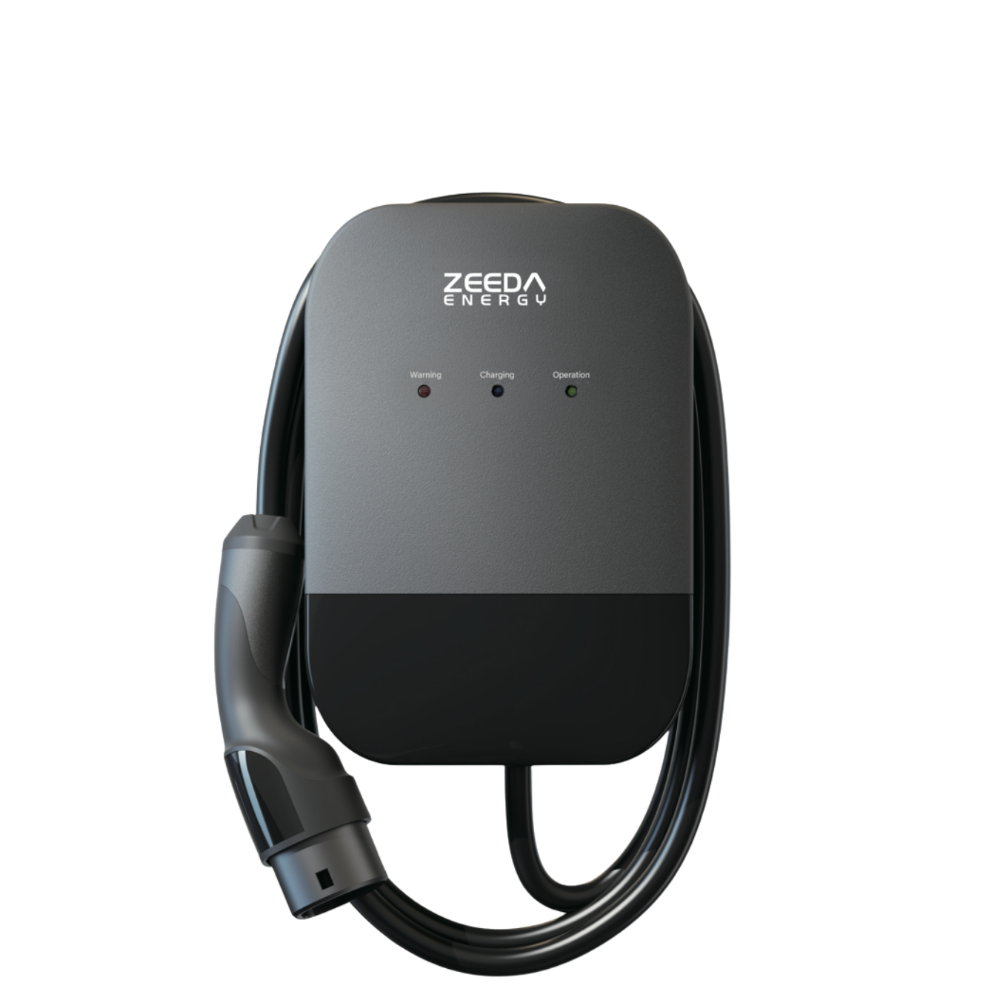

Zeeda Guardian 7kW Type 2 Smart AC EV Charger

Zeeda Guardian 7kW Type 2 Smart AC EV Charger

$799.00 NZD
$799.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Smart Charging, Made Simple

Bring convenient everyday EV charging to your home, apartment, workplace or small-business site with the ZEEDA Guardian. Its compact wall-mounted design and attached 5m Type 2 cable make daily charging straightforward, while flexible access options let you use RFID, Plug and Charge, or the Zeeda Energy app on compatible configurations.

Why customers choose it

  • Ready when you are — the attached 5m cable means there is no separate charging cable to unpack each time.
  • Charge your way — choose RFID access, simple Plug and Charge, or app control depending on the supplied configuration.
  • Built for real-world locations — the compact enclosure carries manufacturer-rated IP55 and IK10 protection.
  • Clear at a glance — simple status lights help show when the charger is ready, charging or reporting a fault.

Ideal for
Suitable homes, apartments, workplaces and small-business locations with an appropriate 230V single-phase electrical supply and compatible Type 2 vehicles.

Need help choosing the right configuration?
Request a GridPilot quote for product availability, configuration options, site assessment and independent installation referral.

Professional installation required
This hardwired charger must be installed, tested and certified by an appropriately licensed New Zealand electrical worker. Full electrical, positioning and protection requirements are provided in the Installation section below.

Maximum charging power is up to 7kW. Actual charging speed and available RFID, Plug and Charge or app functions depend on the vehicle, site capacity, installation and exact configuration supplied.

View full details
🛡️
IP55 / IK10 Rated
Manufacturer-rated for suitable indoor and outdoor installation locations
🔑
RFID & Plug and Charge
Flexible access control depending on the supplied configuration
🔌
5m Tethered Type 2 Cable
Convenient tethered design — no separate charging cable required
⚡
Up to 7kW AC Charging
Practical single-phase charging for everyday home and workplace use
  • Home EV Charging — Practical single-phase charging for suitable homes and everyday use.
  • Apartment Charging — Suitable for selected apartment and shared-parking projects, subject to site approvals, access requirements and electrical design.
  • Workplace Charging — Suitable for staff, visitor and small-office charging where the selected configuration supports the required access arrangements.
  • Small Business Charging — A compact AC charging option for workshops, customer parking and suitable light-commercial sites.
  • Indoor or Outdoor Locations — Manufacturer-rated IP55, subject to the exact mounting location, environmental exposure and installation method.
  1. Arrive and connect — park within reach and connect the attached 5m Type2 cable to a compatible vehicle.
  2. Start securely — swipe the RFID card to start charging in the default access mode.
  3. Choose Plug and Charge — change the charging mode in the Zeeda Energy app when automatic charging after connection is preferred.
  4. Check progress at a glance — the front status lights show standby, connection, charging and fault states.
  5. Finish and store neatly — stop charging using the selected method, disconnect the vehicle and return the cable to its holder.
  • RFID authentication — RFID provides secure everyday charging access by default.
  • App-selectable Plug and Charge — select Plug and Charge in the Zeeda Energy app for automatic charging after connection.
  • Zeeda Energy app — supports charging-mode setup and compatible charging-control and monitoring functions.
  • Wi-Fi and Bluetooth — built-in connectivity supports setup and compatible connected functions.
  • Status indicators — front lights show standby, connection, charging and fault states.
  • ZEEDA Guardian charging box with attached input cable and charging cable • Wall-mounting kit
  • User manual × 1
  • Quality certificate × 1
  • M4 × 6 screws, including pan-head fixing screws
  • ST6 × 60 hex-flange screws × 4
  • Ø8 × 60 expansion tubes × 4
  • Smart charging cards only with selected configurations

Final package contents are subject to the GridPilot order confirmation. Pedestal, upstream electrical protection, installation labour and connectivity services are not included unless expressly stated in writing.

The ZEEDA Guardian is intended for compatible Type 2 vehicles. Vehicle connector, market origin, onboard AC charging limit and any adapter requirements should be confirmed before purchase.

Actual charging speed depends on the vehicle, available electrical capacity, configured current, installation design, battery conditions and other operating factors. A 7kW product rating does not mean every vehicle or site will continuously receive 7kW.

Professional installation required. This is hardwired electrical equipment and is not a DIY product. Final circuit design, cable sizing, isolation, earthing, protective-device selection, mounting, connection, testing and certification must be completed by an appropriately licensed New Zealand electrical worker.

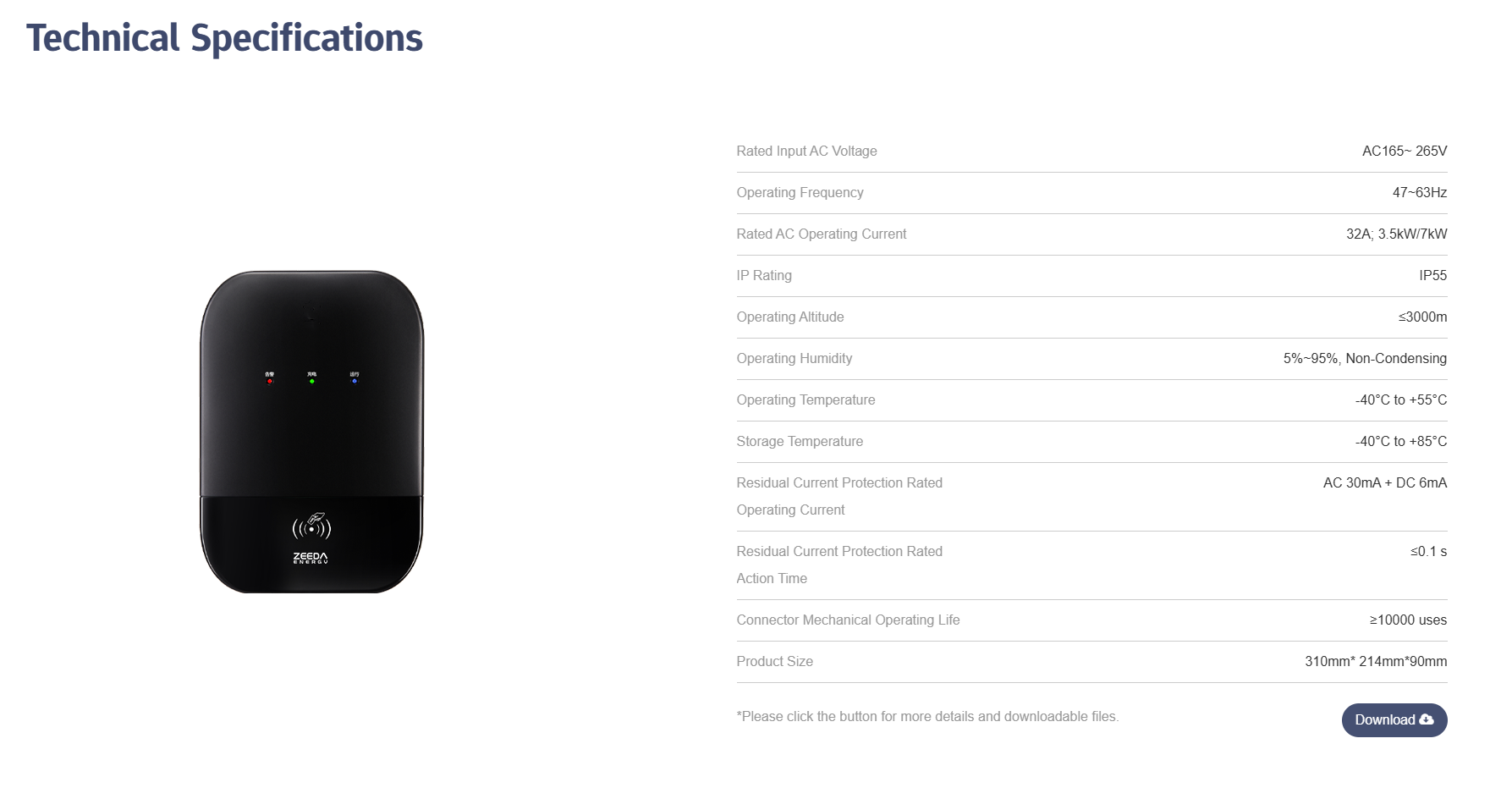

Charging ModeMode 3 AC charging
Maximum PowerUp to 7kW AC charging for practical everyday home and workplace use
Rated Current32A charging capacity
ModelZDA4-DC1-C12E
Input VoltageDesigned for suitable 230V AC installations
Frequency50Hz / 60Hz operation
PhaseSuitable for compatible single-phase properties
ConnectorType 2 connector for compatible electric vehicles
Cable LengthFlexible 5m cable for practical parking and installation layouts
IP RatingManufacturer-rated IP55 enclosure for suitable installation locations
IK RatingRobust manufacturer-rated IK10 impact resistance
MountingFlexible wall-mounted installation, with an optional pedestal setup
DimensionsCompact 310 × 210 × 90mm enclosure that fits neatly into suitable installation spaces
Operating TemperatureWide manufacturer-rated operating range from –40°C to +55°C
Connector LifeDesigned for at least 10,000 connector-use cycles, based on manufacturer specifications
RCD ProtectionIntegrated AC 30mA + DC 6mA residual-current protection
RCD Action TimeManufacturer-stated residual-current response time of ≤0.1 seconds
What certifications apply?
Manufacturer material displays certification marks for multiple markets. Applicability to the exact New Zealand-supplied unit must be verified against its rating label, RCM evidence, supplier declaration and supply-chain compliance records.
Is installation included?
No. GridPilot supplies the charging equipment but does not supply or invoice electrical installation. Installation is separately assessed, quoted, contracted, invoiced, completed, tested and certified by an independent licensed electrical contractor engaged directly by the customer.
Can it be installed outdoors?
The enclosure is manufacturer-rated IP55. The responsible electrical worker must still confirm the exact location, weather exposure, mounting, cable entry, drainage and installation method.
How can charging be started?
Depending on the supplied configuration, charging can be started using RFID, Plug and Charge or the Zeeda Energy app on a compatible Connect Charger model. Wi-Fi and Bluetooth are shown on the photographed unit; 4G is not confirmed.
Will it always charge at 7kW?
No. Actual charging power depends on the vehicle, available supply capacity, configured current and installation conditions.
Is it compatible with every EV?
No. It is intended for compatible Type 2 vehicles. The vehicle connector, market origin, onboard AC charging limit and any adapter requirements should be checked before purchase.

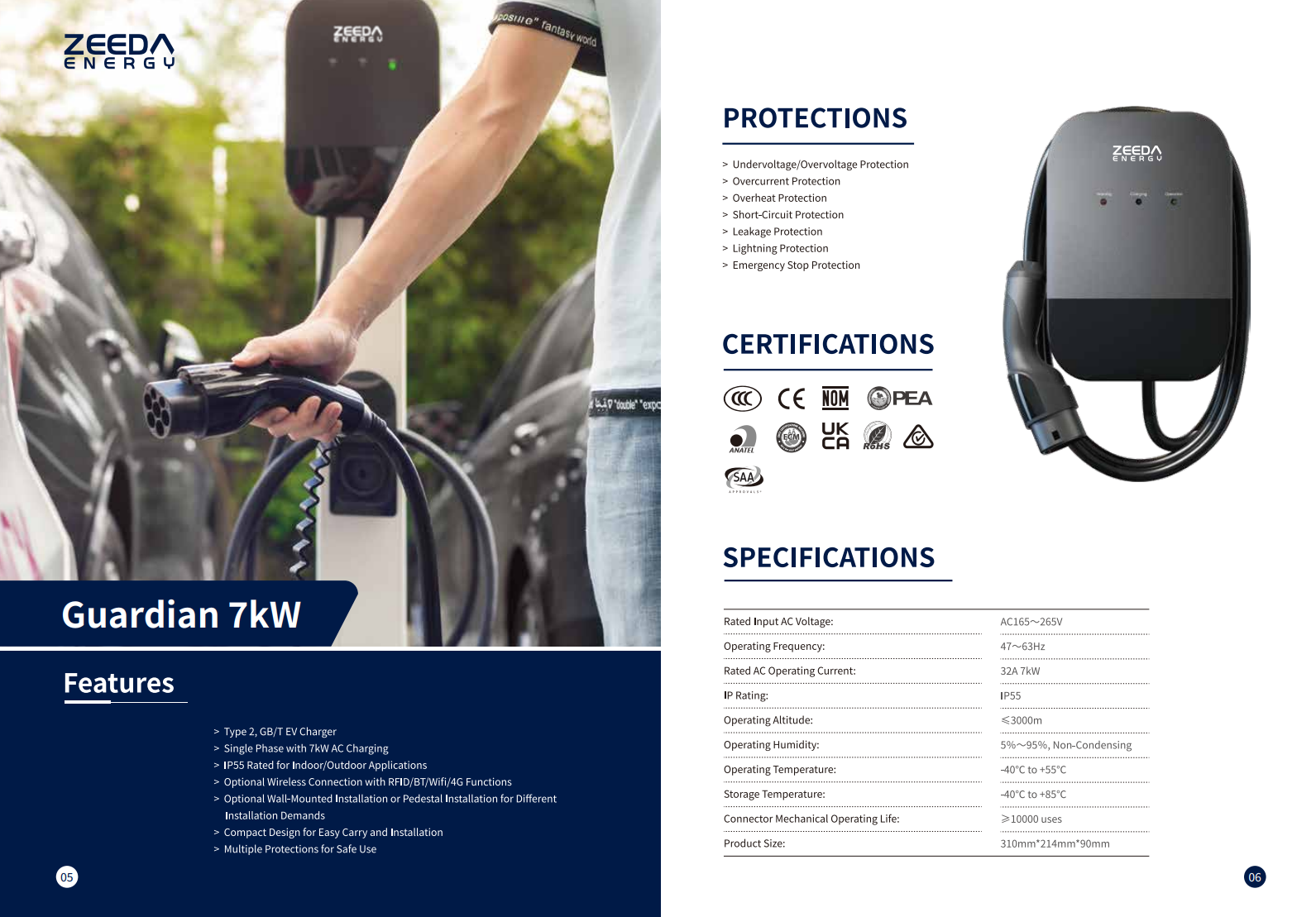

Product Flyer Technical Datasheet
